Abrasive Metering Valves

Your abrasive metering valve is among the most important components of your blasting set-up.

This valve’s importance is often dismissed and contractors unknowingly lose efficiency and profit because they are wasting pressure and abrasives – not to mention jobsite downtime and continual repairs.

The following information is designed to help you understand the importance of your metering valve and make the right buying choice for your operation.

Pressure System Best Scenarios Multiple Blasters? Min Pressure Required Benefits Disadvantages Retrofit
SCHMIDT MICROVALVE Pressure-Release
  • This is the old version of the MicroValve 3, we would only recommend this when you have lots of blast pots with this same valve, otherwise it is best going with the latest generation
No No
  • Low Price
  • No cleanout port – means if any foreign debris is clogging up the valve, it must be removed from the pot to be cleared
SCHMIDT MICROVALVE Pressure-Release
  • Great for set-ups that use an overhead feed of abrasive to automatically the blast pot.
  • Abrasive can be gravity fed into the pot whenever the pot is depressurized.
  • Typically used when you use a guillotine valve. (But guillotine valves are unsafe)
No No
  • Inexpensive basic set-up
  • Increased propensity to allow moisture into the system
  • Unable to facilitate multiple blasters using same pot
  • Multiple delays while pot repressurizes
Retrofit Kit
SCHMIDT THOMPSON I VALVE Pressure-Hold
  • This is the old version of the Thompson Valve, we would only recommend this when you have lots of blast pots with this same valve, otherwise you are best going with the latest generation
Yes 80 psi
  • Faster response time, less abrasive wastage than MicroValve
  • Cylinder head is prone to cross threading, hard to maintain
SCHMIDT THOMPSON  VALVE II Pressure-Hold
  • Frequent start/stop blasting, holding the pressure in the pot will save you up to 10% of your abrasive
  • Multiple blasters off same pot
  • Projects using long lengths of hose
  • Gives you a 2 second response time
Yes 80 psi
  • Faster response time to deadman
  • Unable to automatically refill with abrasive
Retrofit Kit
SCHMIDT TERAVALVE XL Pressure-Hold
  • #1 Preferred by Blast Pot Repair Technicians
  • Built from High Tensile Stainless Steel, has very low wear
  • Frequent start/stop blasting
  • Multiple blasters off same pot
  • Projects using long lengths of hose
Yes 75 psi
  • Fewer moving part than Thompson II
    Faster response time to deadman
  • Reduces abrasive consumption
  • Smaller valve body can fit under pots with low clearance (replaces MicroValve)
  • Abrasive flow not able to support a blasting robot that uses steel grit
  • Unable to automatically refill with abrasive
Retrofit Kit
SCHMIDT MICROVALVE SCHMIDT MICROVALVE 3 SCHMIDT THOMPSON I VALVE SCHMIDT THOMPSON VALVE II SCHMIDT TERAVALVE XL
Resulting Pressure System Pressure-Release Pressure-Release Pressure-Hold Pressure-Hold Pressure-Hold
Best Scenarios
  • This is the old version of the MicroValve 3, we would only recommend this when you have lots of blast pots with this same valve, otherwise you are best going with the latest generation
  • Great for set-ups that use an overhead feed of abrasive to automatically the blast pot.
  • Abrasive can be gravity fed into the pot whenever the pot is depressurized.
  • Typically used when you use a guillotine valve. (But guillotine valves are unsafe)
  • This is the old version of the Thompson Valve, we would only recommend this when you have lots of blast pots with this same valve, otherwise you are best going with the latest generation
  • Frequent start/stop blasting, holding the pressure in the pot will save you up to 10% of your abrasive
  • Multiple blasters off same pot
  • Projects using long lengths of hose
  • Gives you a 2 second response time
  • #1 Preferred by Blast Pot Repair Technicians
  • Built from High Tensile Stainless Steel, has very low wear
  • Frequent start/stop blasting
  • Multiple blasters off same pot
  • Projects using long lengths of hose
Can Serve Multiple Blasters? No No Yes Yes Yes
Minimum pressure required No No 80 psi 80 psi 75 psi
Benefits
  • Low Price
  • Inexpensive basic set-up
  • Faster response time, less abrasive wastage than MicroValve
  • Faster response time to deadman
  • Refined design makes it last longer & easier to service
  • Fewer moving part than Thompson II
  • Faster response time to deadman
  • Reduces abrasive consumption
  • Smaller valve body can fit under pots with low clearance (replaces MicroValve)
Disadvantages
  • No cleanout port – means if any foreign debris is clogging up the valve, it must be removed from the pot to be cleared
  • Increased propensity to allow moisture into the system
  • Unable to facilitate multiple blasters using same pot
  • Multiple delays while pot repressurizes
  • Cylinder head is prone to cross threading, hard to maintain
  • Unable to automatically refill with abrasive
  • Abrasive flow not able to support a blasting robot that uses steel grit
  • Unable to automatically refill with abrasive
Retrofit Retrofit Kit Retrofit Kit Retrofit Kit

Choosing The Perfect Abrasive Metering Valve

If you’re a project manager or site foreman – here’s an important question you should find out if you don’t already know.  What generation of abrasive metering valve do you have on your blast pots?

It may surprise you that your metering valve is one of the most significant indicators of your efficiency and profit.   This is one of the most important (yet neglected) considerations on the majority of jobsites we visit.  It’s so important in fact – that if you’re a project manager looking to turn ONE DIAL to improve your team’s performance – we suggest investigating your abrasive metering valve.  It’s to your financial advantage to understand the metering valve you’re using and why it’s most likely costing you hundreds of dollars a day in inefficiencies.

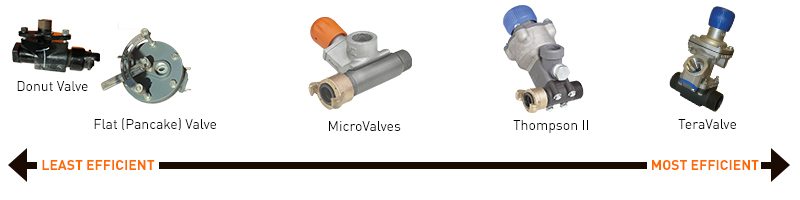

First… here’s a general layout of the abrasive metering valves currently in use. These are listed from least efficient to most efficient across the broad range of blasting applications.

Efficiency of various metering valves

So, what makes one metering valve any better than another?  ONE metric.   Which valve saves you the most money? And this metric should be evaluated on the following 4 criteria:

  1. Wasted Abrasive
  2. Clean-up Costs
  3. Productivity/Downtime
  4. Needed Repairs/Replacement Parts

We’ve explained these costs in a previous Primed Insight if you’d like to learn more.  But suffice it to say, thousands of dollars can be lost each day simply by saving $200 on the purchase of a cheap metering valve. This is something every project manager should pay attention to.

A popular misunderstanding is all these valves represent different methods of metering. That is not correct. Each column is actually a generational improvement on the previous valves.

Think of the above valves through this perspective:
Perspective of valve technologies


Engineering and materials have improved with each product upgrade.

  • The metering has gotten more precise – conserving abrasive
  • Breakdowns and repairs have drastically reduced with each generation

Now, as we’re presented things, it may seem that the silver bullet to everyone’s problems is simply to buy this most current valve – The Axxiom Schmidt TeraValve.

And it probably is our top recommendation.  It not only improves efficiency across the broadest range of industrial applications, but surprisingly, it also costs less than its predecessor – The Thompson 2 Valve.

However, for high flow jobs that use multiple #10 nozzles or in blast room situations using a robot, the Thompson 2 is actually our top recommendation.

Now in case you think we’re just trying to sell you a more expensive valve – here’s an insight within an insight…

Because we’re a business like you, profit and loss is something we must also manage.  That’s why we have installed over 200 Tera Valves on our vast rental fleet. You can imagine that renting blast pots comes with quite a bit of maintenance and repair when they’re returned. We discovered that simply by installing Tera Valves on our rental pots, those maintenance costs dropped 75%.

THAT’S why we recommend TeraValves.  They’re a superior product.

And in case you’re interested – contact us for more information on upgrading your current pot to the latest and greatest generation of metering valves.

If you have questions as to which valve is best for your pot and applications – just reach out and ask. That’s our job!

Other Top Considerations

BEWARE: Knock-off Metering Valves

It may surprise you that this valve is one of the most significant indicators of your efficiency and profit. It affects the safety of your operators, how much abrasive you waste, and various pressure concerns.  Rule of Thumb: The cheaper your valve costs on up-front – the more it will end up costing you in downtime, repair parts, wasted abrasive, and potential harmful accidents.

We only Schmidt Axxiom valves because they are the highest quality, safest, most efficient and reliable metering valves in the industry.  Because they are of such high quality, Axxiom’s competitors are constantly producing knock-off valves trying to duplicate Axxiom’s superiority.  But don’t fall for it.  Buying knock-off valves will end up costing you much more in the end.

Your Valve Determines Your Pressure Status

Pressure Hold or Pressure Release?

Each of our standard blast machines has the option of having a pressure hold system or a pressure release.

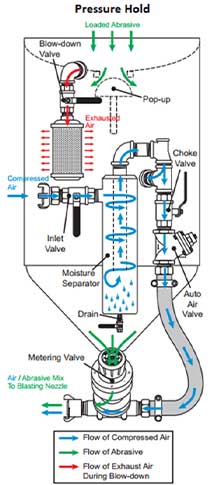

Pressure Hold

A Pressure Hold blast pot simply means that when the blasting operator releases the deadman handle to stop blasting, abrasive and airflow cease traveling down the blast hose toward the nozzle. However, the blast pot itself remains fully pressurized and ready to send the air and abrasive once the deadman is reactivate. Retaining blast pot pressure reduces the amount of time needed to commence blasting – because the operator doesn’t need to wait for the entire pot to repressurize.

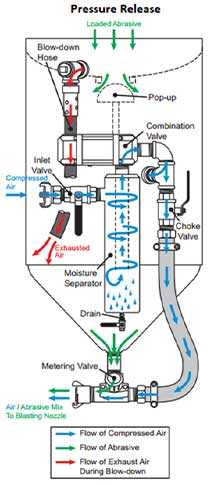

Pressure Release

A Pressure Release blast pot simply means that when the blasting operator releases the deadman handle to stop blasting, the pressure inside the pot that drives the air and abrasive is released into the surrounding atmosphere. This “depressurizes” the blast pot completely. This depressurization requires a bit more time to cut-off the flow of air and abrasive than a pot that retains pressure. Likewise, it takes a bit longer, once the operator reactivates the deadman, for the pressure to build in the pot to facilitate the flow of air and abrasive to the nozzle to resume blasting.

Pressure Hold Benefits

  • Safer and faster stop / start

  • Smoother start / stop

  • Reduces abrasive consumption and waste

  • Reduces moisture problems

  • Great for continual / high production blasting

  • Great for projects using lengthy hoses

  • Necessary to support 2 or more blasters

Pressure Release Benefits

  • Overhead Feed of Abrasive

    This is great for set-ups that utilize an automatic overhead fee of abrasive into the blast pot when it’s depressurized.

Pressure Hold Disadvantages

  • Refill Breaks

    A Pressure-Hold system requires temporary shut-down of blasting operations to refill the blast pot with abrasive

Pressure Release Disadvantages

  • Slower stop / start activation

    These delays inhibit production and compromise safety
  • Typically wastes more abrasive

  • Invites moisture into the pot

  • Unable to serve more than 1 blaster

The Axxiom Schmidt Combo Valve

We’re discussing the iconic combo valve from Axiom manufacturing today. This is a deadman valve which controls the air into, and the air out-of, your blast pot. It’s how your deadman works on a pressure release blast pot. That is a blast pot where the pressure is released out of the pot every time we stop blasting, versus a pressure hold where the pressure is kept in the blast pot when we stop blasting.

At the core of a pressure-release blast pot is this deadman valve called the combo valve and the reason is was the first valve in the industry to combine both the inlet which you see on this side and the outlet which you see on the other side into one valve.

There’s three key criteria in choosing a dead man valve for a blast pot. The first is safety. I’d like to go through the key safety requirements for the combo valve.

The first is that the air from the blast pot is exhausted through a piece of blast hose.

This is a failsafe aspect to this valve because it has a large spring it automatically when you lose pressure or something goes wrong this opens up and lets the air of the blast pot out.

The second thing is, because it has such a large piston and spring, it’s very fast active. That is very important because if there’s an incident takes place I need to make sure the blast pot shuts down as soon as possible.

The second key purchasing criteria for a Deadman control valve is productivity. The way to maximize productivity is to minimize pressure drop, and the way we do that with the combo valve is that as the air comes in to the bottom of the valve… travels up and through and heads on to blast, it passes through the valve itself.

Many valves have a restricted convoluted air passageway through the valve. Not the combo valve. It has a single plug that blocks the air and when it activates it pulls right out of the way and allows full and free airflow.

The third important criteria is how easy the valve is to maintain. How easy it is to use.

I’d like to point out two key benefits:
The first is the most common wearing part – is this hose. No need to rebuild the valve it’s simply a matter of refitting it just like you refit a blast hose. So that’s a very significant time saver.
Then if something goes wrong with the valve itself, it has what we call a unitized piston assembly – you see one here in my hand. It allows you to very simply undo four bolts, change-out the entire working center of the valve, put the four bolts back in, and be up and operating again in less than 10 minutes.

No need to pull the valve off the pot, no need to get out thread tape, no need to touch the piping. It’s a massive benefit to operators in the field.

Two things to remember: combo valve must be used with the Schmidt Deadman handle. They are designed to work together, and the use of non-standard or other brand Deadman handles is a safety hazard. And the last point is make sure you use genuine parts. It’s a safety requirement on every job site that genuine parts are used.

Common Issues With Abrasive Metering Valves

  • Metering Valves are built to meter your abrasive, that being said, they are wear items, as they control the flow of your abrasive. Regular maintenance checks are paramount to ensure you don’t wear out your valve prematurely.
  • Most common cause for premature wear is when you choke the blast pot to overcome moisture issues. This forces abrasive out of the pot, which isnt the design intention of the valve. Metering Valves are designed to be like an egg timer, releasing the abrasive, flowing simply by gravity.
  • Pressure release type systems are simple and reliable but slower to respond, as each time you engage your deadman, the whole pot needs to re-pressurize before blasting can begin (5-15 seconds)
  • Pressure hold systems are faster to respond (less then 2 seconds) but more complex, making having a competent service personnel mandatory.
  • Some abrasive metering valves have a tendency to jam if being used with fine abrasive, as the abrasive gets between the plunger and the sleeve. This could be from recycled abrasive which contains material in it that is finer than as originally supplied. The selected grade may be powder-like. If you are having this issue its recommended that you try the Tera Valve, as it is designed for this application.
  • Abrasive Metering Valves can be impossible to remove for maintenance if there considerable of abrasive in the blast pot. This can be overcome a couple of ways. The simplest way is to add a union end ball valve to the blast pot and attach the metering valve to it. This allows the abrasive flow to be cut off and the valve removed. The valve will still require unscrewing with a wrench to remove. An additional component that can be added is a TriClover Quick Connector. This is in effect a clamp that allows you to quickly drop the valve. It is designed to be used by hand by may require a wrench to loosen. The downside of adding these items to your blast pot is that they add height to your valve assembly and you may not have sufficient height underneath the pot for the combined assembly.
  • Abrasive Metering Valves can be subject to wear because of differential pressure. Differential pressure is a problem caused by pressure in the hose being different to the pressure in the pot. Pressure can be higher or lower in the pot or the hose. The basic operating principle of a blast pot is that abrasive falls by gravity out of the pot and into the air stream. For this to happen the pressure needs to be the same in the pot and in the hose to allow the abrasive to gently flow into to the air stream. Once the equalization is disturbed abrasive is forced through the valve (either up or down) under pressure. This results in accelerated premature wear. This usually caused by air leaks in your blast pot or deadman system.

IMPORTANT CONSIDERATIONS FOR CHOOSING THE RIGHT ABRASIVE METERING VALVE

How continuous will your blasting be?

This has a major impact on the purchasing decision as to whether purchase a pressure hold or pressure release system. A pressure hold system is much quicker to activate and deactivate. The hold in the term pressure hold means when the deadman handle is released, pressure is held in the blast pot. The stopping of the blast is achieved by cutting the air coming into the pot (but not releasing the air that is already in there), air into the hose and abrasive into the metering valve. By holding the air already in the pot while blasting ceases, restarting the process is relatively quicker. It is quicker to shut down as well because it is not dependent on all the air being released from the pot to stop the blasting. Quicker system response is beneficial in stop/start blasting. Examples of stop/start blasting include: difficult access (working off scaffolding) and small parts requiring turning.

What metering system does your preferred valve have?

Some abrasive metering valves use a plate sliding across an orifice to meter abrasive flow. The problem with this is, that as the orifice is opened up, the volume of abrasive increases exponentially (i.e. the increase in increase increases). A system where a piston slides inside a cylinder means that the amount the abrasive increases in volume stays the same as the valve is opened up.

Primed Insights & Knowledge Articles

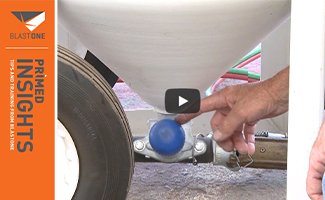

How To Properly Set The MicroValve

Watch Video

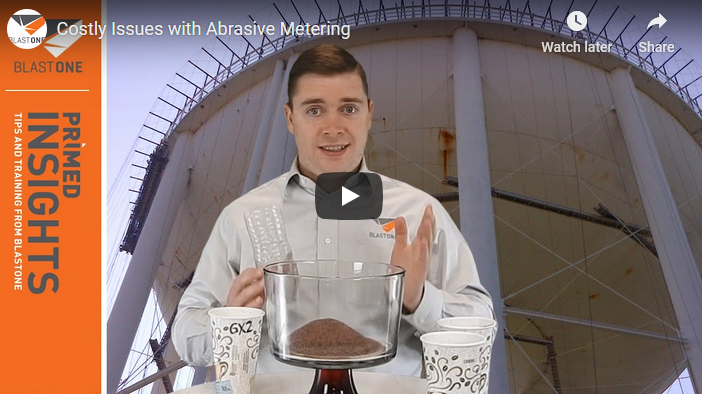

Issues With Abrasive Metering

Watch Video

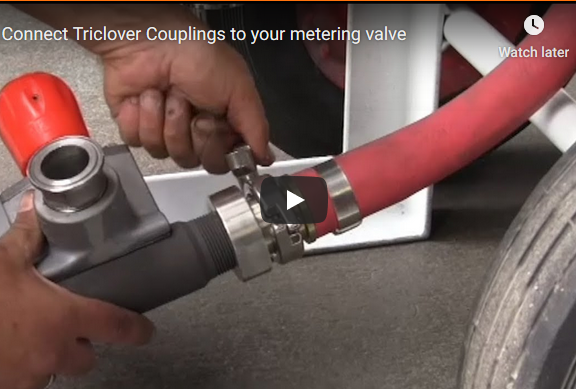

Make Metering Valve Removal Easy!!
