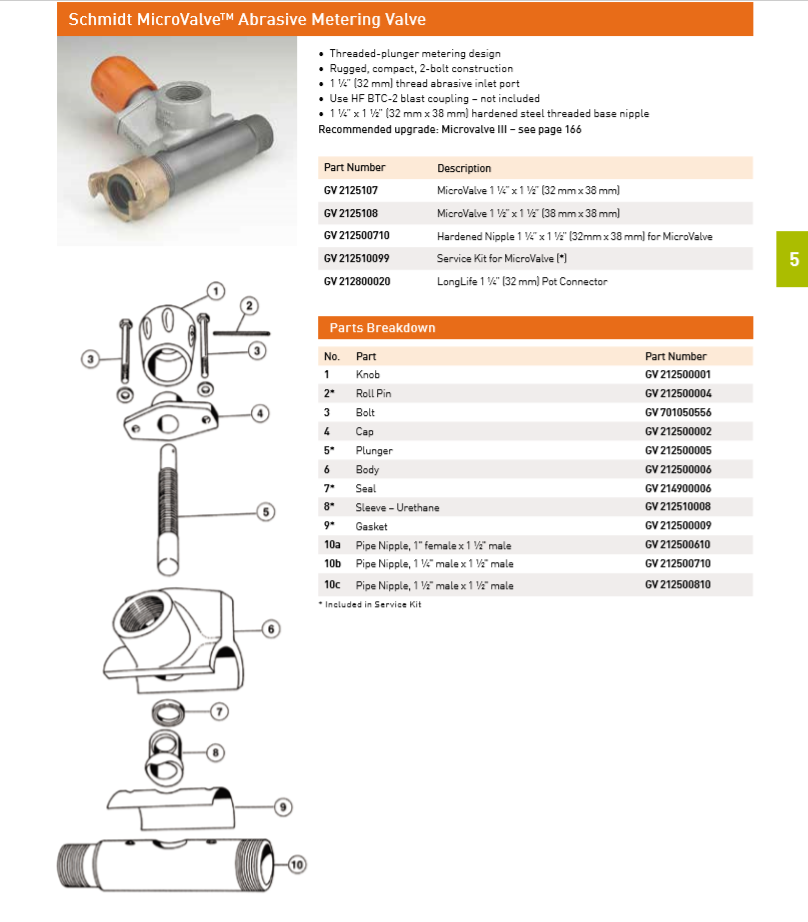

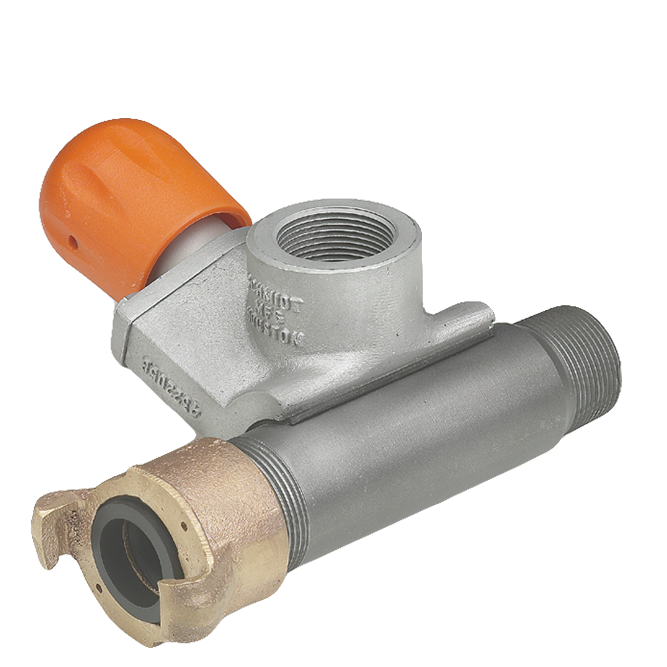

Schmidt MicroValve Abrasive Metering Valve

SKU: P-GV2125

  • Threaded-plunger metering design
  • Rugged, compact, 2-bolt construction
  • 1 ¼” (32 mm) thread abrasive inlet port
  • Use HF BTC-2 blast coupling – not included

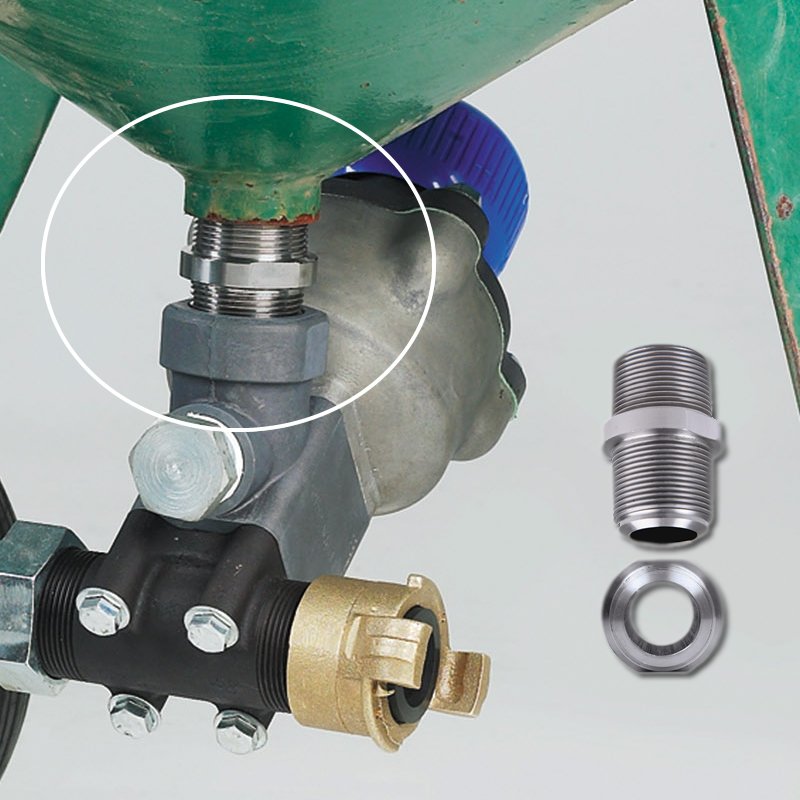

  • Hardened steel threaded base nipple
  • Recommended upgrade: Microvalve III


Schmidt MicroValve Series 1 or ‘old style’ Abrasive Metering Valve. This grit valve revolutionized the abrasive blasting industry by allowing blasters for the first time to accurately meter their abrasive. Each turn of the knob adjusts the flow of abrasive blasting media, this means you save money with leaner flow of sand blast sand media.

Additional information

Weight N/A
Dimensions N/A
Nipple Size

1-1/2'' x 1-1/4'', 1-1/2'' x 1-1/2''

Part Number
