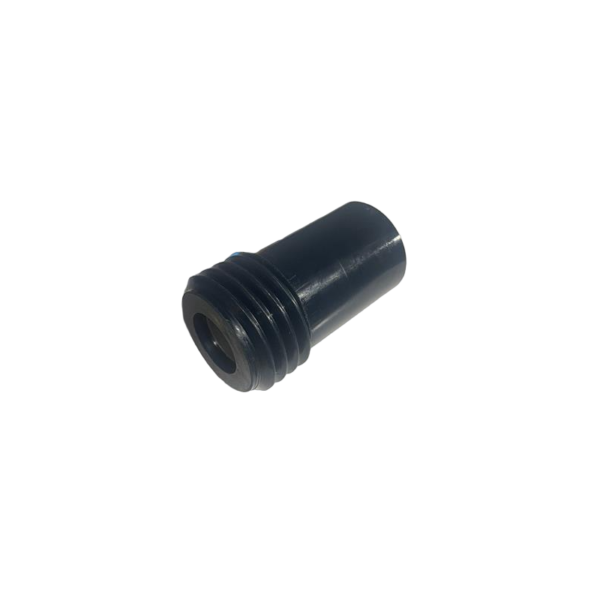

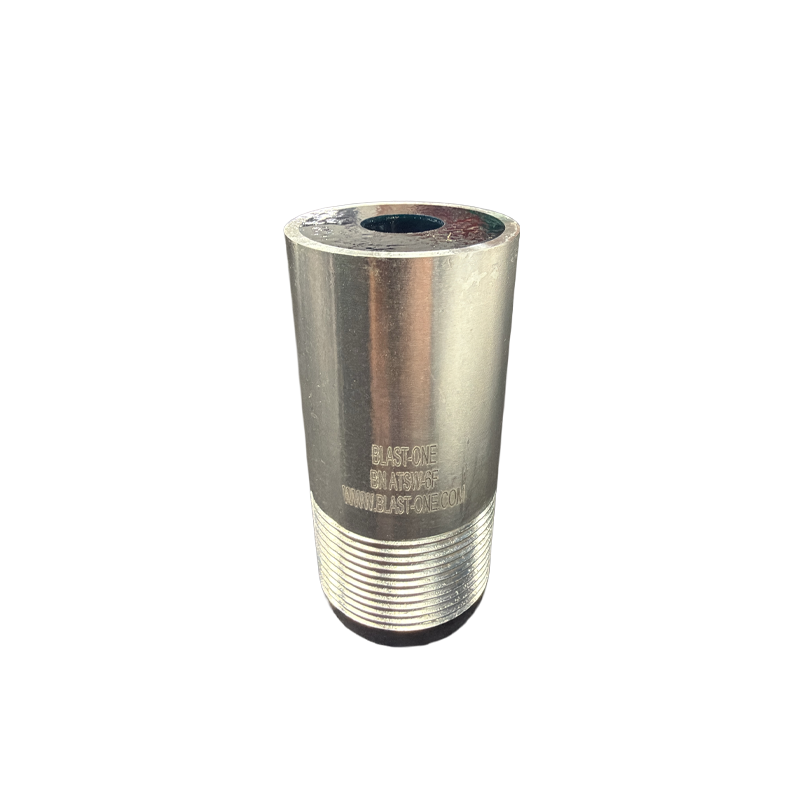

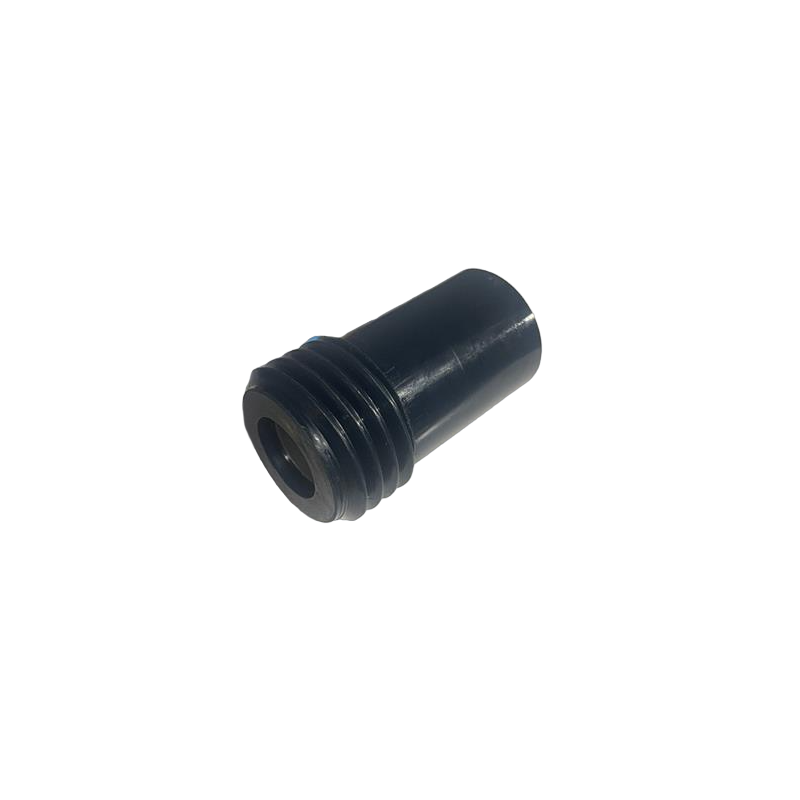

Tungsten Carbide Short Venturi Nozzles

Sku: P-BNATSW

Tungsten Carbide Short Venturi Nozzles are used for close-range abrasive blasting where a standard length nozzle may be difficult to position or may produce too narrow a pattern at short standoff distance. The short 3-3/8" body is suited to work inside tight spaces, around edges, near structural details, or in other areas where the operator needs a wide pattern without backing far away from the surface.

Each Tungsten Carbide Short Venturi Nozzle uses a venturi bore to help spread the blast stream for wider coverage at short range. These nozzles are available in multiple thread, jacket, and orifice combinations to suit operator preference and nozzle holder type.

Thread options include fine thread (1-1/4") and contractor thread, coarse (50mm / 2"). Outer construction options include all poly, poly with aluminum or brass threads, and all aluminum. Orifice sizes are available from #3 (3/16") through #12 (3/4"). Related series search references include T121 series for all aluminum, T121-P series for poly jacket with brass or aluminum thread, and T121-AP series for all poly construction.

• Product type: short venturi abrasive blast nozzle
• Primary use: wide pattern blasting at short range, typically 12" or less from the surface
• Overall length: 3-3/8"
• Bore type: venturi bore
• Liner material: tungsten carbide
• Thread options: fine thread (1-1/4") and contractor thread, coarse (50mm / 2")
• Outer construction options: all poly, poly with aluminum or brass threads, or all aluminum
• Orifice range: #3 (3/16") through #12 (3/4")
• Selection note: choose thread type to match the nozzle holder, then select orifice size based on available air volume and blasting requirements
