IRVING SHIPBUILDING – PAINT BOOTHS

HALIFAX, NOVA SCOTIA

BACKGROUND

Irving Shipbuilding Inc. is headquartered in Halifax, Nova Scotia. Additionally, Irving is a member of the J.D. Irving group of companies, one of Canada’s largest family-owned companies. The Royal Canadian Navy chose Irving Shipbuilding to produce the next class of Canadian Surface Combatant (CSC), and Arctic and Offshore Patrol Ship (AOPS) vessels under Canada’s National Shipbuilding Strategy (NSS).

Irving faced the daunting task of building a new facility to produce this large amount of naval ships. Moreover, they needed a large paint facility within the same building.

SOLUTION

Irving Shipbuilding - Paint Booths

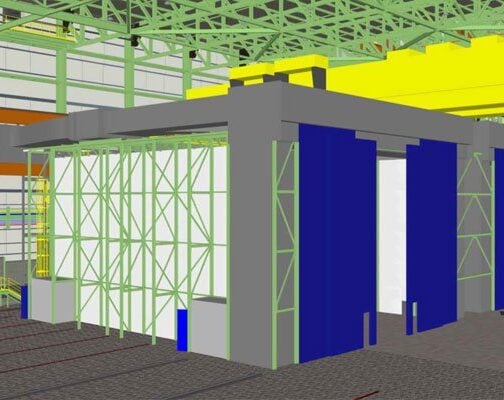

3D Rendering Blueprint of Paint Booth Installation

BlastOne worked with Irving Shipbuilding Inc. to design and engineer a highly custom ship module paint facility. The massive paint facility measured a total of 180’ (54 m) long x 88’ (26.5 m) deep x 52’ (15.6 m) high. We incorporated two separate paint booths.

Irving had the option to separate the larger paint booth into two separate paint booths. The dividing curtain allowed up to 3 different ship modules to be painted simultaneously.

The system has 330,000 cfm of dehumidified air. During the curing phase, the air heats up to 140°F.

RESULTS

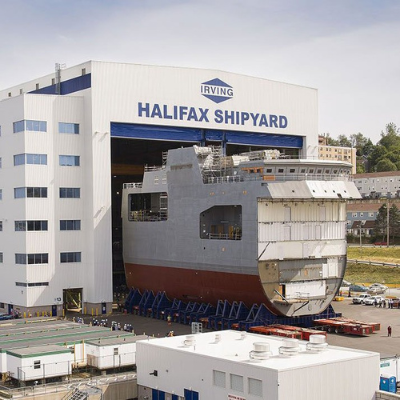

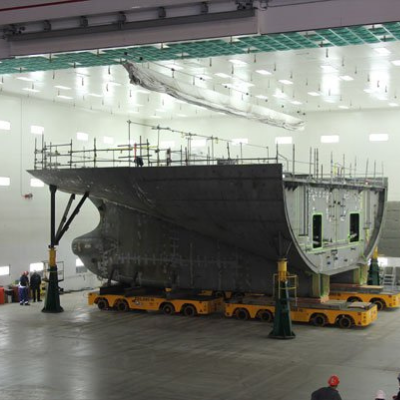

Irving Shipbuilding now has the most modern shipbuilding facilities in North America in Halifax, Nova Scotia. They now have the ability to paint ship sections 365 days a year regardless of weather patterns, thanks to the built-in heating and de-humidification.

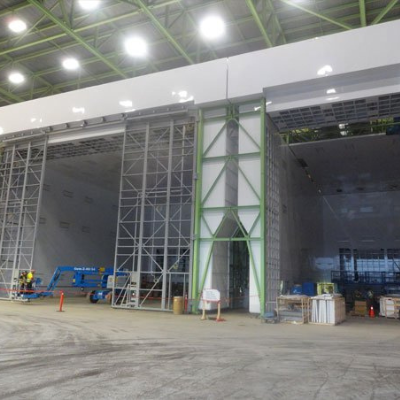

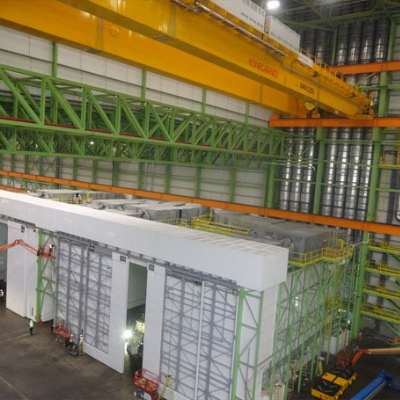

The construction phase of Paint Booths
Incorporation of 7 huge exhaust stacks into the external walls of the main building
Massive double slide & swing doors

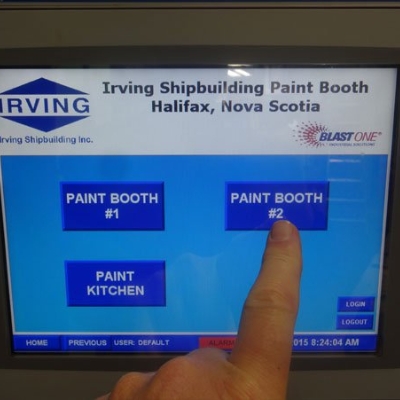

Touch screen controls for managing all functions of the paint booths
Built-in heating and de-humidification systems allow Irving to continue production all year

KNOWLEDGE & LEARNING

4 WAYS TO CURE PAINT FASTER

HOW TO CORRECTLY MIX PAINT

THE PROPER EQUIPMENT FOR EACH COATING

CASE STUDIES

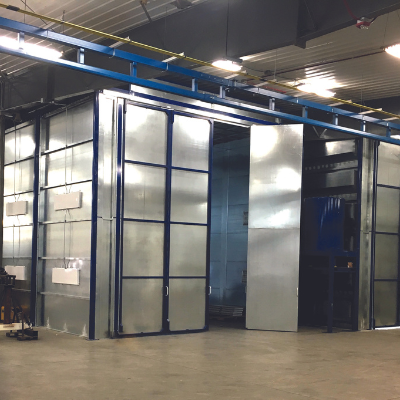

Superior-Marine-400x400-1-1
