Garnet Abrasive Buying Guide

Garnet Abrasive Buying Guide – Australia / New Zealand

BLASTONE HAS BEEN WORKING AS A DISTRIBUTOR OF GMA GARNET FOR OVER 35 YEARS

Over the last 20 years garnet has become the primary abrasive used for sandblasting in Australia and New Zealand. BlastOne has helped contractors on different projects across Australia and the globe and we understand the requirements that different projects bring. We trust this article helps you to understand what grade of garnet we recommend for your application.

BlastOne is Australia’s undisputed industry expert, we understand abrasives, equipment and provide unparalleled support from our teams in branch offices across all major centers in Australia, New Zealand, Malaysia and the United States.

Benefits of using GMA Garnet

  1. Fast Blasting = Faster job completion
  2. Lower cost to blast with = blasting faster with less abrasive saves you money
  3. Low Dust = increases your visibility and safety
  4. Better Quality results = cleaner surface for your coating to adhere too

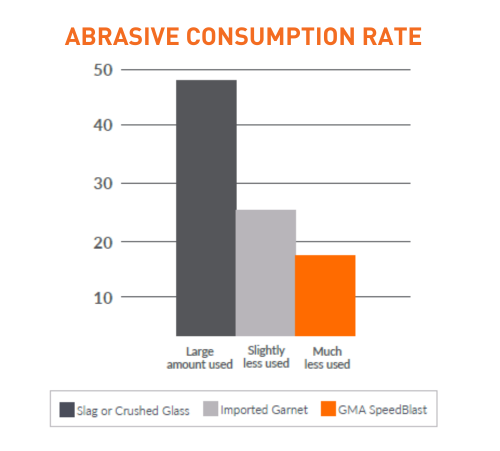

  5. Lower Abrasive Consumption Rate = use less abrasive, clean up less abrasive

Give us your project – we will deliver a solution

Anywhere in Australia, anytime of the year, any project requirements – BlastOne has the largest stock holding of abrasives, equipment, hire equipment, supplies and more. We can deliver your project on time, and on budget.

Garnet Dust Comparison

GMA NewSteel Garnet Abrasive

APPLICATIONS

NewSteel Garnet is ideal for:

  • New construction blasting
  • Light rust removal
  • Milscale removal
  • Preparation for powdercoating
  • Whip Blasting

NewSteel Garnet will blast milscale and light rust very quickly. We have experienced blasting rates in excess of 40m2/hr when doing a class SA 2.5 near-white blast removing milscale. This is typically twice as fast as what a contractor would achieve when blasting with other abrasives like crushed glass or staurolite.

TECHNICAL DETAILS

  • Expected profile on mild steel – 50 microns
  • Recycles in a Blastroom – about 6
  • Estimated Abrasive Consumption – 250 kg/hr
  • Comes in 25kg bags and 1 and 2 tonne bulk bags
  • Same day or next day delivery for 98% of Australia

GMA SpeedBlast Garnet Abrasive

APPLICATIONS

SpeedBlast Garnet is ideal for:

  • General industrial maintenance blasting
  • Light coating removal
  • Where you are constantly changing what you are blasting from milscale to coating removal
  • Onsite maintenance
  • Pipelines

GMA SpeedBlast is the general purpose blend of garnet used in Australia for coating removal and industrial maintenance sandblasting. We typically see SpeedBlast Garnet used for the removal of 100-250 micron coatings, blasting at rates up to 30m2/hr.

TECHNICAL DETAILS

  • Expected profile on mild steel – 75 microns
  • Recycles in a Blastroom – about 6
  • Estimated Abrasive Consumption – 270 kg/hr
  • Comes in 25kg bags and 1 and 2 tonne bulk bags
  • Same day or next day delivery for 98% of Australia

GMA PremiumBlast Garnet Abrasive

APPLICATIONS

PremiumBlast Garnet is ideal for:

  • Heavy coating and rust removal
  • Ship/Marine Coatings including offshore
  • Mining, Water Treatment Plants and Refineries
  • CUI applications (Corrosion under insulation)

GMA PremiumBlast Garnet is the coarser blend designed for coating removal projects from 200 micron up to 1,000 micron coating thickness. We also find Premium Blast used for removing heavy rust. Typical Blasting rates with PremiumBlast Garnet are up to 30m2/hr

TECHNICAL DETAILS

  • Expected profile on mild steel – 90 microns
  • Recycles in a blast room – about 6
  • Estimated abrasive consumption – 300 kg/hr
  • Comes in 25kg bags and 1 and 2 tonne bulk bags
  • Same day or next day delivery for 98% of Australia

Your Project Partner from Start to Finish

Most companies will love to take your order, but BlastOne is the only company whose mission is to create
Happy Lifetime Repeat Customers

Whatever your project requirements, BlastOne has the abrasive, the rental equipment,
the service personnel, the reputation and the passion to support you onsite or at your workplace.

Equipment and Operator Training

Equipment and Operator Training

Equipment Inspections

Equipment Inspections

Preventative Managment Programs

Preventative Management Programs (service contract)

Vendor Managed Inventory

Vendor Managed Inventory

Equipment Modernization and Retrofits

Equipment Modernization and Retrofits

Extended Warranty

Extended Warranty

Optimise your Blasting Equipment when using GMA Garnet!

Congratulations, you must be using GMA Garnet as your preferred abrasive. This is the worlds most superior abrasive for industrial sandblasting.

To get the most out of your garnet and to realise its full blasting potential and ability to drive additional profits to your bottom line, you need to ensure that your blasting equipment is world class.

nozzle testing kit

Operating Nozzle Pressure

  • Blast hose should be at least 3x the nozzle size. Minimise the length of your whip hose to 10 meters max.
    • General recommended Whip hose is 2-Ply SupaFlex BHS32 – 1-1/4” internal diameter
    • General recommended Blast Extension hose is 4-Ply BH40 – 1-1/2” internal diameter
  • Bull hose (air supply from compressor to the pot) should be at least 4 times your nozzle size.
    • General recommended Bull hose is BHBULL50 – 2” internal diameter
  • Blast Pot Piping should be at least 3 x the nozzle size.
    • General recommended piping is 1-1/2” internal diameter pusher line
Page 417 - BLASTMASTER X

Right Sized Hoses, all the way from the compressor

  • Checking your nozzle pressure is very important. This is something that the guy running the project should check every single day. It is the number 1 health check that can be performed every morning – it’s like stepping on the scales every morning.
  • You need over 100psi at the nozzle, if you have more then one guy blasting, make sure they are all blasting when you check it, and give it about 2 minutes of blasting to level out the pressures before you take the pressure.
  • Blast Nozzles should be replaced after they have worn out 1/32”. Your investment in a new nozzle will repay you in additional blasting productivity and lower diesel costs in less then a week. Nozzles should last 500 blasting hours.
  • A BlastOne rep can help you identify issues in your blast set up if you don’t have 100psi, but first check the compressor. A normal system will lose somewhere around 10psi from the compressor to the nozzle. If you are losing more then that, review the next few points, then call us.
Air Prep systems

Use the right sized AirPrep for moisture removal

  • Blasters who use AirPrep moisture removal systems usually find that cool, dry compressed air actually blasts up to 15% faster.
  • On an average day with low humidity a 950 AirPrep will draw up to 50 gallons of water out of the blasting air.
  • Moisture is a blaster’s worst enemy. i.e. extra material used, extra labour hours resulting in lower productivity.

With dry air it is much easier to control your abrasive flow. You will rarely need to choke your blast pot, using an AirPrep™.  This, alongside getting the abrasive metering near perfect, enables many blasters to use 25% less abrasive, just by adding an AirPrep to their blasting package.

Page 418 - Bm 1

Accurate Metering Valve for abrasive flow

Now you have enough airflow with low moisture, you are ready to get blasting in a serious way. The final component is a abrasive metering valve that can accurately, consistently and repeatedly meter the abrasive. Fine tuned to meter your garnet, grain by grain.

The ultimate metering valve is the Schmidt TeraValve. It has a pneumatic piston which will open and shut when the blaster activates the deadman handle. This valve will open up to a specified amount, based on how far the screw cap is open, which is easy to see with the virtual position indicator.

To learn more about the TeraValve Abrasive Metering Valve

To learn more about All Abrasive Metering Valves

Ring our consultants today on 1800 190 190 to discuss your requirements.
